Overview

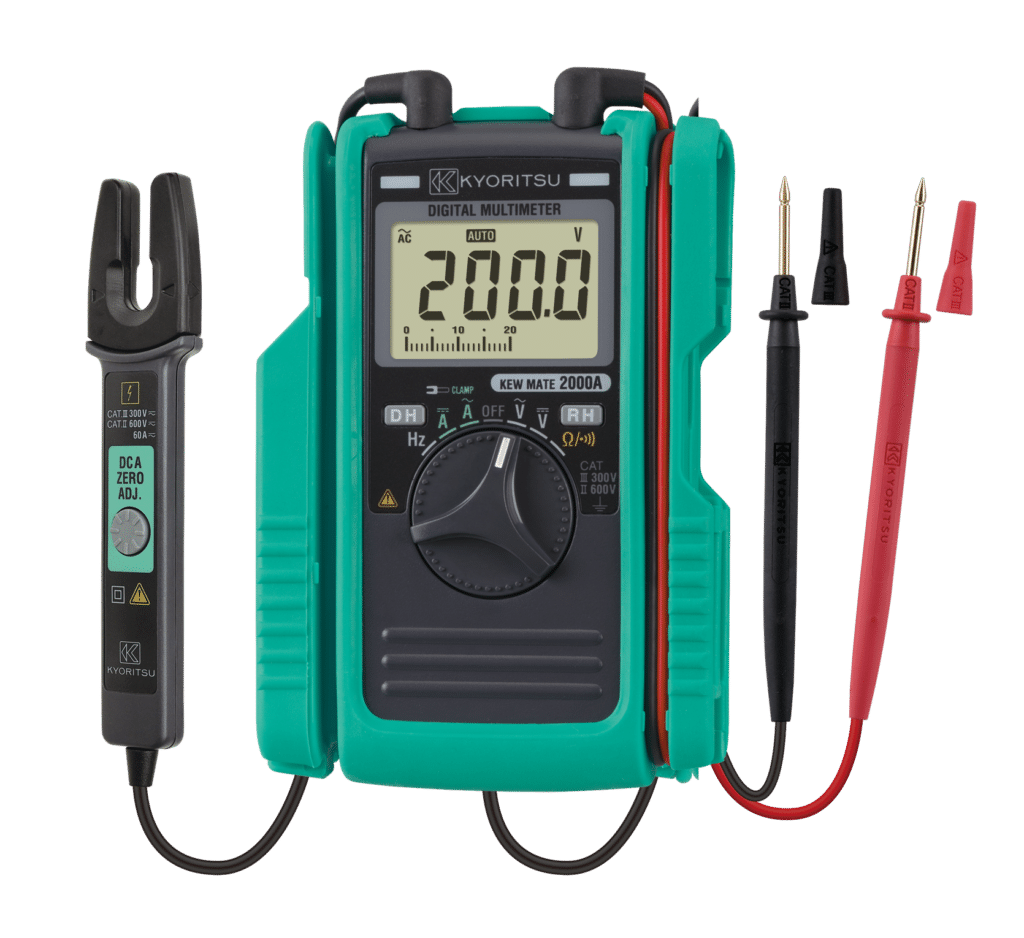

This unique DMM with AC/DC clamp sensor is perfect to clamp wires even in tight spaces where a normal clamp meter is too big or wires are too short.

Key Benefits

  • Small in size – fits in your pocket
  • Unique Open Jaw technology for AC/DC current measurements
  • AC / DC measurements make it ideal for solar installations and auto electricians.
  • The open jaws are thin, and perfect for clamping wires even in tight spaces.
  • Small open jaw clamp is the best way to measure the current in a single circuit at the distribution board.
  • With test lead cap to protect from short circuit accidents.
  • Auto-power save
  • IEC 61010-1 CATⅢ 300V, CATⅡ 600V Pollution degree 2, IEC 61010-2-032, IEC 61010-031, IEC 61326-1, EN 50581(RoHS)

Key Features

  • AC and DC voltage up to 600V.
  • AC and DC current up to 60A.
  • Resistance up to 34MΩ.
  • Continuity test buzzer (warns below 30Ω).
  • Conductor size ø6 mm max.
  • Max resolution of 0.1A AC/DC.
  • Frequency measurement
  • Bar graph indicator
  • Data hold memory function
  • Relative function
  • Auto and manual ranging
  • Display: 3400 counts
