Overview

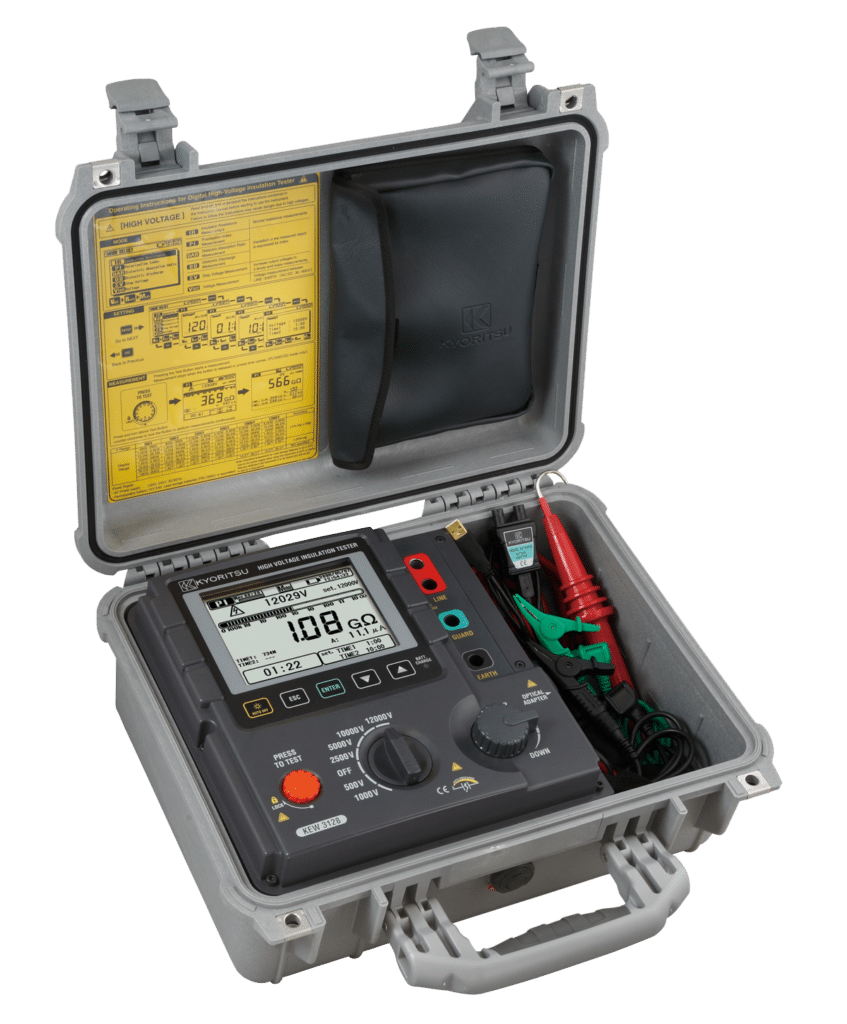

Microprocessor controlled high voltage insulation resistance tester with Diagnostic functions.

Suitable for analyzing the insulation characteristics of cables, transformers, motors, generators, high-pressure switches, insulators, wiring installations, etc.

Key Benefits

  • High current for fast testing even with large capacitive circuits
  • Measures insulation resistance up to 35TΩ and has large graphic display
  • Memory and logging functions comes with dedicated application software
  • Filter function and capacitance and leakage measurements
  • Polarisation Index, Dielectric discharge, Dielectric Absorption, Step voltage measurement

Key Features

  • Test voltage: 500V, 1000V, 2500V, 5000V, 10000V & 12000V
  • 5mA short circuit test current
  • Fine adjustment of voltage setting at each range is also possible
  • Graphic representation of the insulation resistance and leakage current versus time on large display with bar graph and backlight
  • Can be operated from built-in rechargeable battery or from AC line
  • Automatic discharge after test with monitoring of the discharge voltage
  • Print screen function enables to record up to 32 display screens
  • Internal memory can store about 40,000 data
  • Robust design for field use with IP64 rating (with lid closed)
