Overview

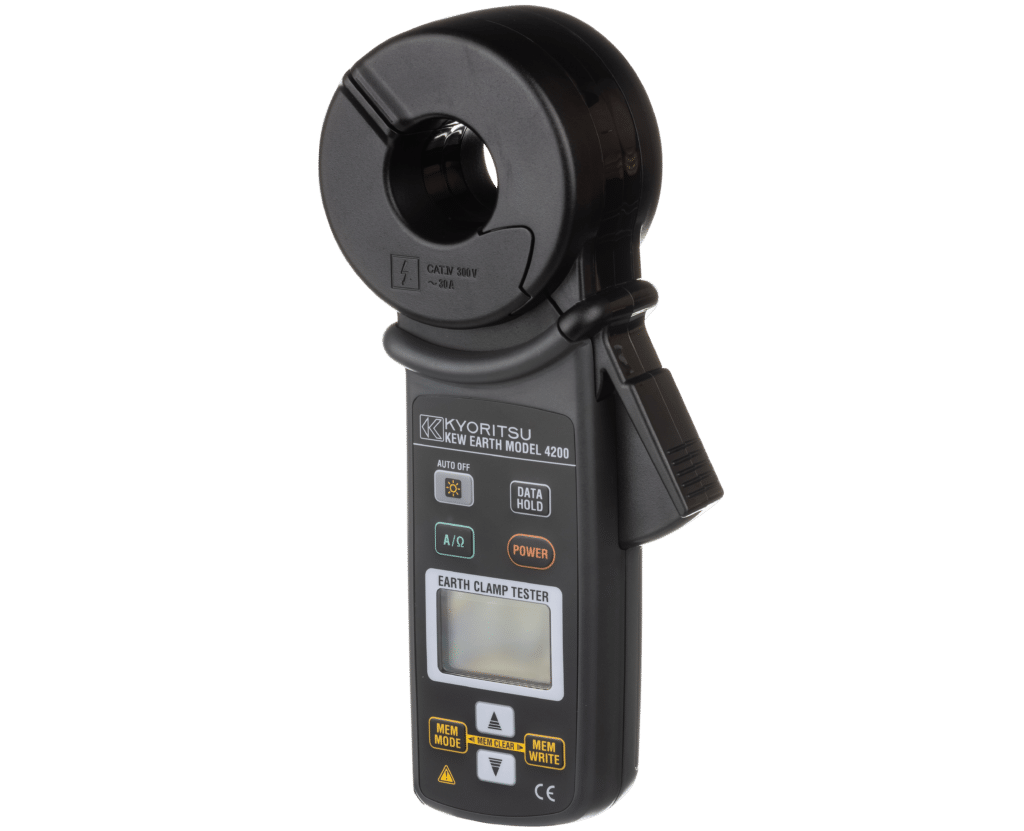

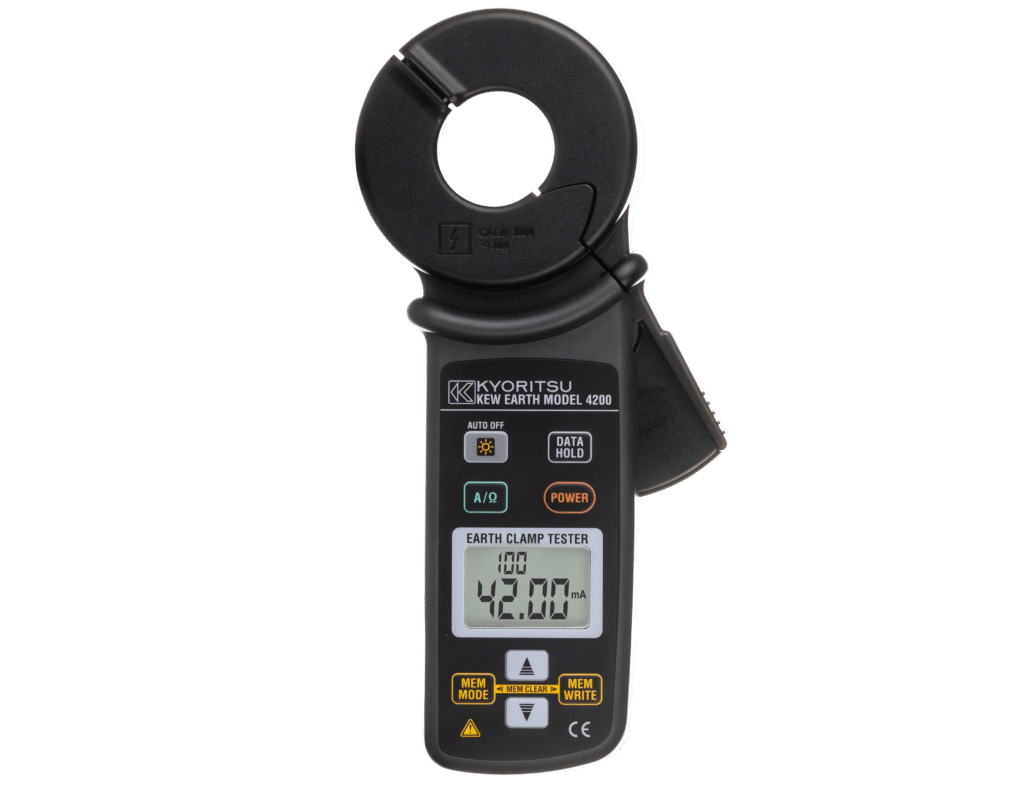

Save time with this earth resistance clamp – no need to lay out auxiliary earth spikes. Ideal for measuring earth spikes in systems with multiple earthing points.

True RMS leakage or phase current readings from 0.1mA to 30A provides vital additional information in earthing networks.

The filter function offers increased immunity to electrical noise and a noise mark appears in excessively noisy environments.

Key Benefits

  • Measures earth resistance without auxiliary earth spikes
  • Complies to IEC61010-1 CAT. IV 300V pollution degree 2
  • Includes resistor for operation check

Key Features

  • True RMS for highly accurate readings
  • Measures earth resistance from 0.05 to 1200Ω
  • Measure leakage current from 0.1mA to 30A
  • Noise check function
  • Memory function saves up to 100 measurements
  • Data hold memory function
  • Buzzer function
  • Back light
